The LBin™ Systems

the innovative, Safe & Affordable Public Waste Transfer Station

The LBin System is a Waste Transfer Station (WTS) technology paradigm shift.

Developed to respond to changing regulations for safety & resource recovery at public WTSs and improve on outdated technologies to:

  • Eliminate all the major safety issues
  • Permit the interception of the problem & hazardous waste.
  • Permit the safe interception of Reuse & Recyclable items to significantly improve resource recovery.

It achieves this in a fraction of the time and cost of traditional civil constructed solutions.

Patented globally. The system has two core elements:

  1. LBin (TM): a unique open-faced bin that provides a sealed Lay & Display floor that can be moved quickly & easily,
  2. BumpBay (TM): the part of the system that provides for the safe segregation of users, machines, Waste Transfer Vehicles & Staff, all on the same level site.

The LBin™ Systems Overview

The LBin System solutions include:

The LBin™ Systems Features & Benefits

  • Standardised Modular Design

    Standard Modular Elements can be supplied in less than 8 weeks and can be added and subtracted with demand.

  • Australian Invention

    Designed & developed in Australia, patented globally.

  • Australian Made

    Made in multiple locations across Australia, from recyclable materials.

  • Low Cost

    With such a simple cost effective & standardised design, the system is just a small fraction of the cost of a traditionally constructed Waste Transfer Station. You can even build it a bay at a time as you need.

  • Improves EPA Compliance

    Lay & Display inspection allows problem waste, hazards, reuse & recycling material extraction before entering the bulk waste stream.

  • Best Practice Safety

    Eliminates all the big Hazards of Waste Transfer Stations.

  • Maximising Recycling & Reuse Recovery

    Lay & Display inspection and the ability to move bins to sorting bays allows for the Maximum extraction with the minimum of damage Reuse and Recyclable materials.

  • Containing Hazards

    With fully sealed construction & a quick to attach Quarantine Membrane hazardous waste can be easily identified, contained and removed from the work area.

LBin Systems Components

There are LBin’s, Bays & SheltaBays as standard as well as custom options and arrangments

All LBin Barrier systems have the following bay sizes and bay width seretouts:

5.1m wide Bay  for the extra-large LBins

4.5m wide Bay  for the medium-sized LBin

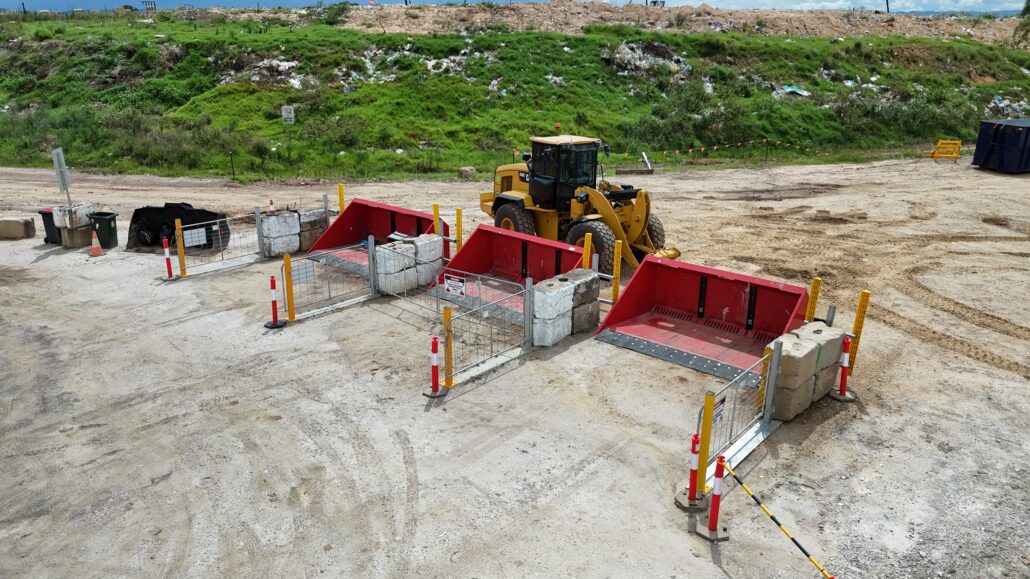

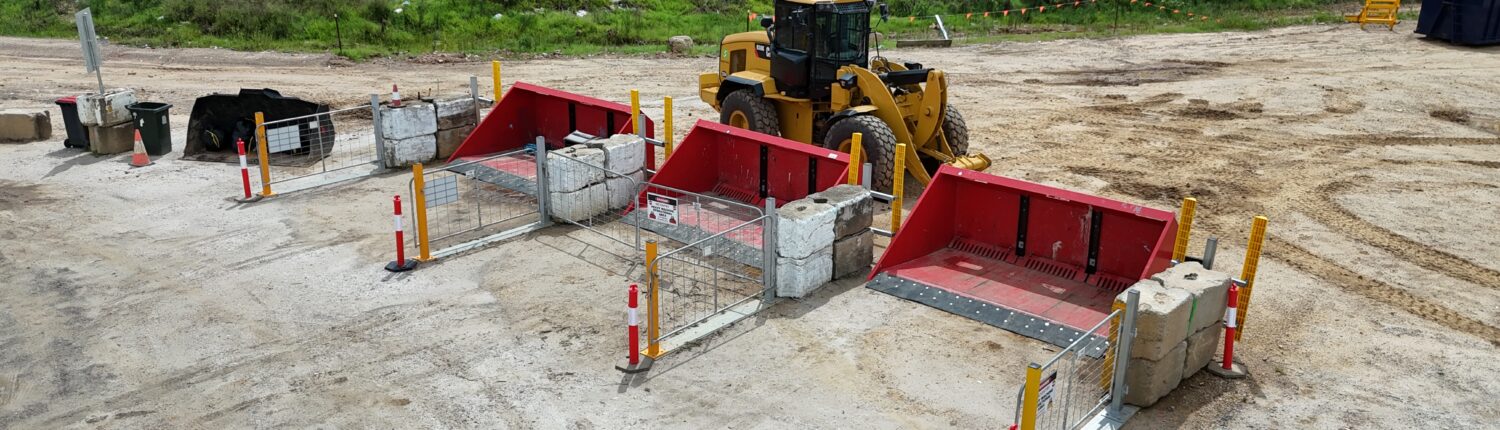

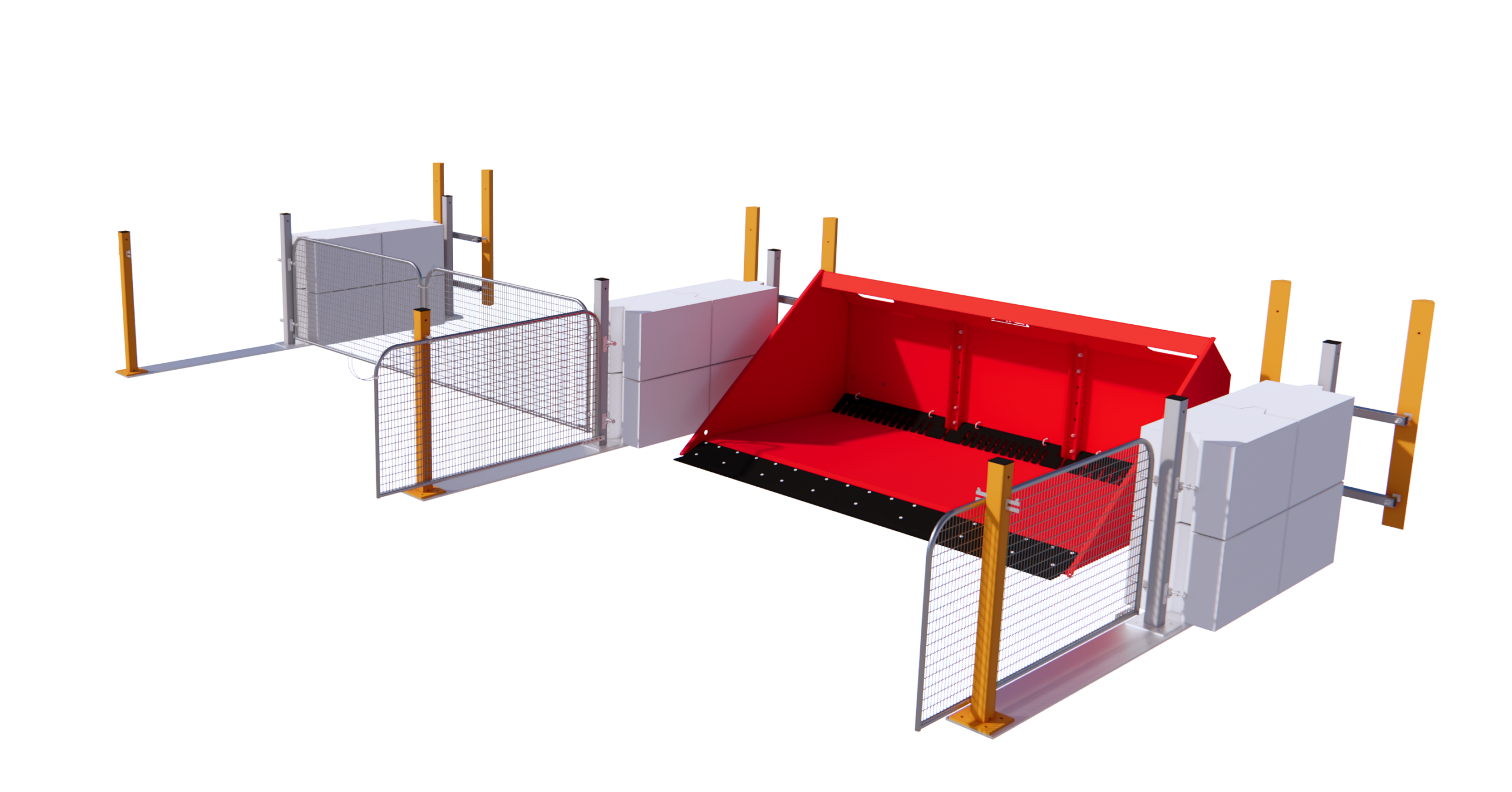

BumpBay – Gravity

Self-supporting BumpBay systems for sites without pads or footings.

Ideal for capped Landfills.

1
2
3
4
5
6
1

Simple Low Maintenance swing gates

2

Weighted Barriers

3

Operator Height and width Guides.

4

5.2m Wide Bays

5

Replaceable Customer Guide Posts.

6

Bumpstop barriers to minimise damage

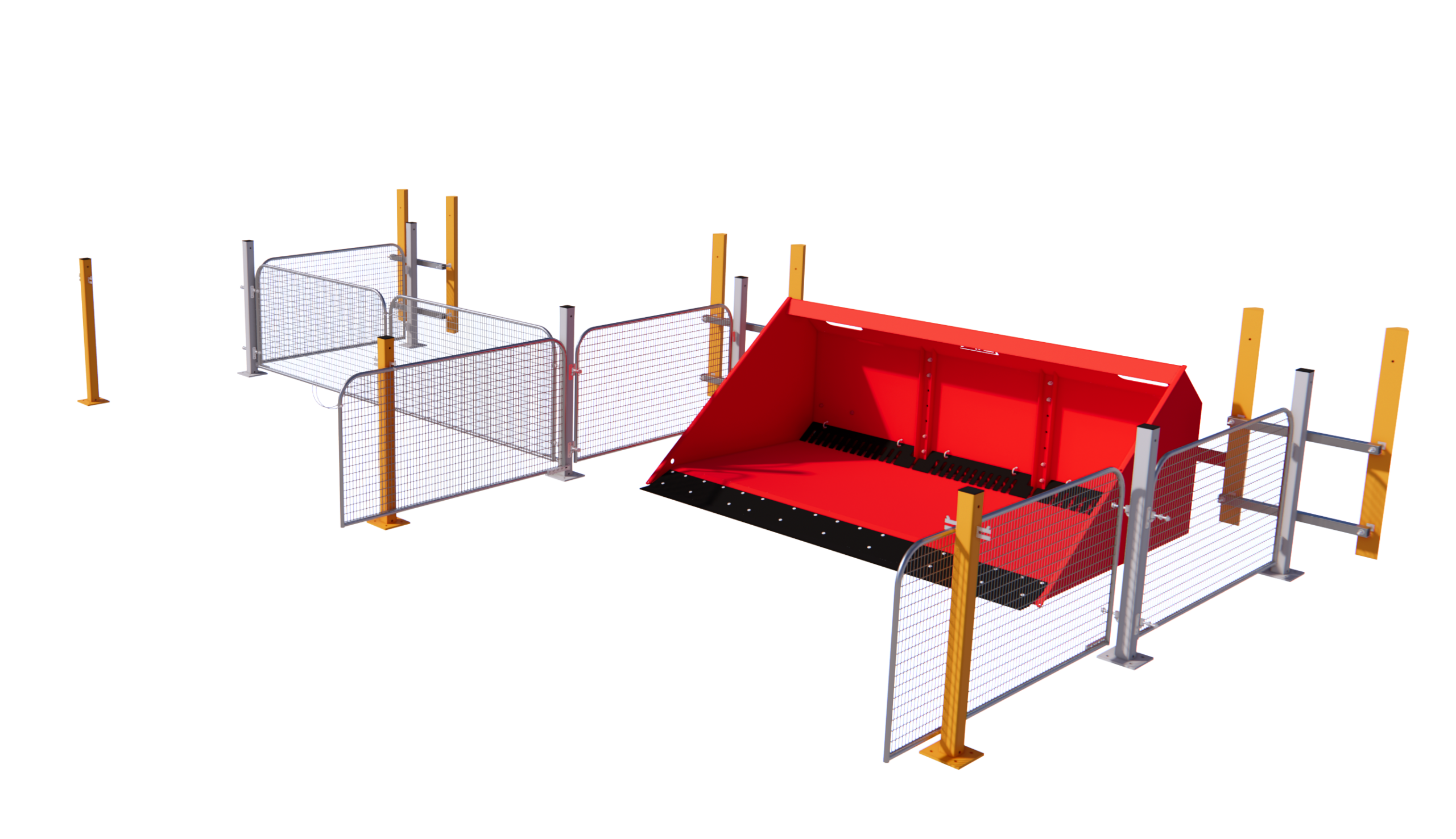

BumpBay – Bolt Down

For concrete pad or footing installations.

Good for level sites & Retrofits.

1
2
3
4
5
6
1

LBin 3.0 or 3.6m Wide

2

Guides for Machine Operator

3

Galvanised Barrier Gates

4

5.2m Wide Bays

5

Sturdy Bolt to Slab Construction

6

Bumpstop barriers to minimise potential damage from loader operation

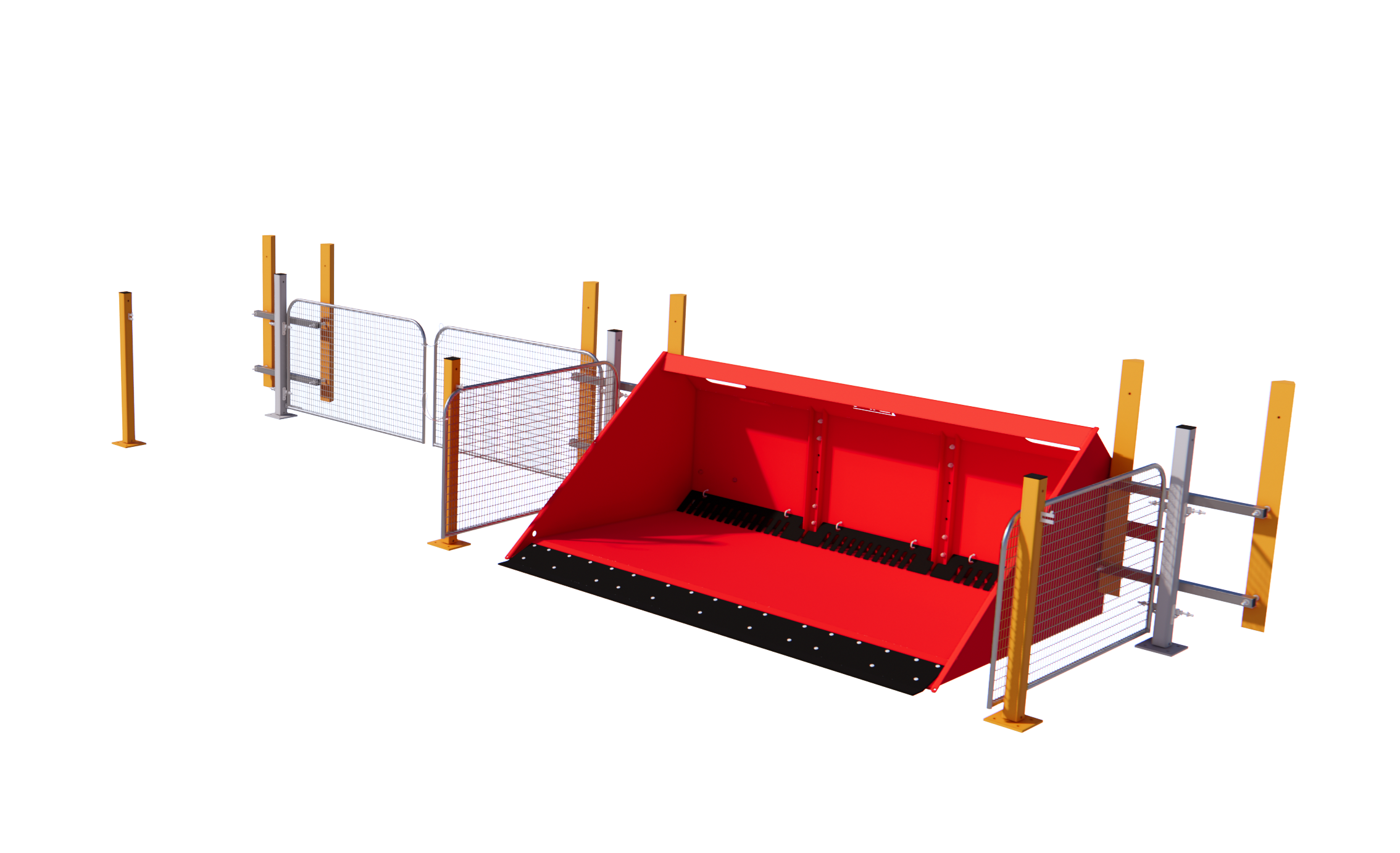

BumpBay – Compact

The barrier gates are set back towards the rear of the bay, providing less segregation between bays and requiring form end supervision of Bin placements and removals.

Suitable for sites with more commercial customers, or tight turning areas where full-size bays cant be easily accommodated.

1
2
3
4
5
6
1

LBin  3.6m Wide

2

Guides for Machine Operator

3

Galvanised Barrier Gates to rear of  BumpBay

4

5.2m Wide Bays

5

Sturdy Bolt to Slab Construction columns

6

Gates, when open, form a barrier to the next LBin BumpBay

When closed act as a barrier to separate machinery from the public

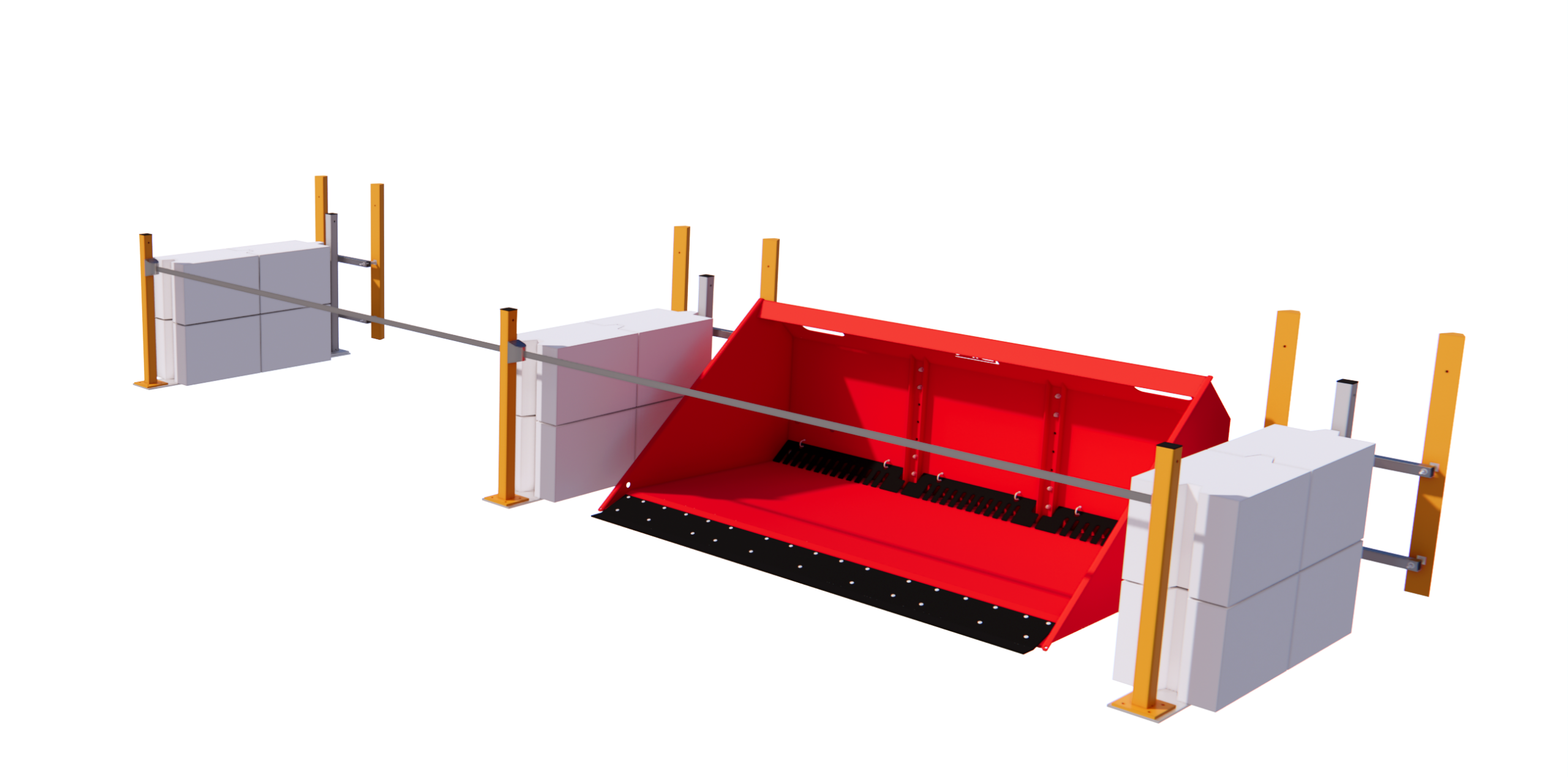

BumpBay – Gravity Compact Barrier

Simple barrier design for more compact sites with limited space

Weighted solution for flexibility / no need for cicil construction

Quick and easy to move, provides easy acess for drive through drop off solutions

.

1
2
3
4
5
6
1

3.6m Wide LBin

2

Weighted Road Barrier. Concrete or poly water-filled.

3

5.2m Wide Bays

4

No footings are required, just a firm-level site.

5

Bumpstop barriers to minimise potential damage from loader operation

6

Retractable barriers to restrict public access when LBin is removed

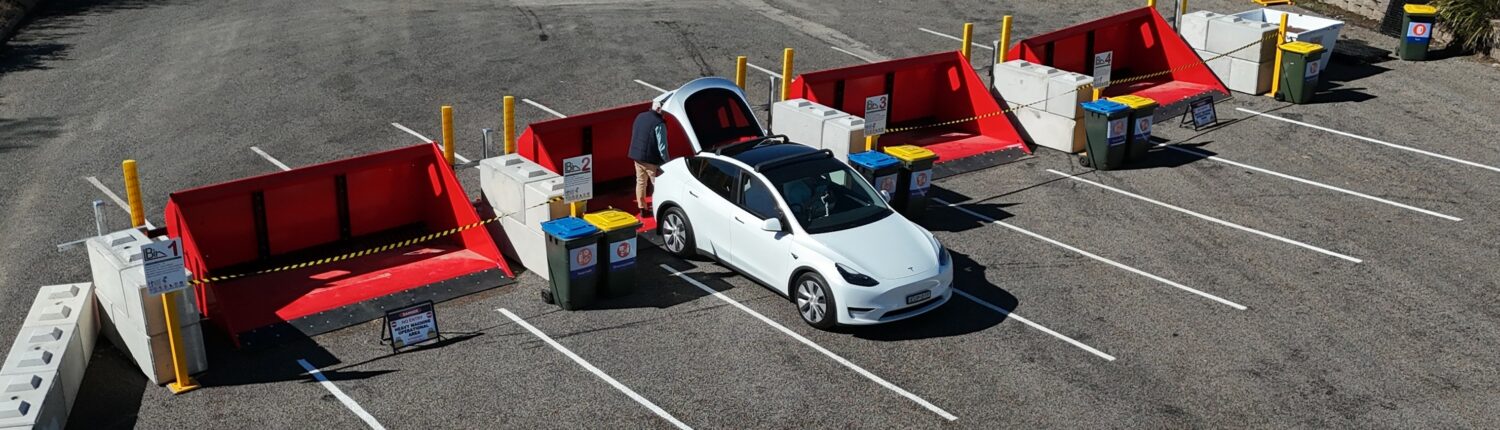

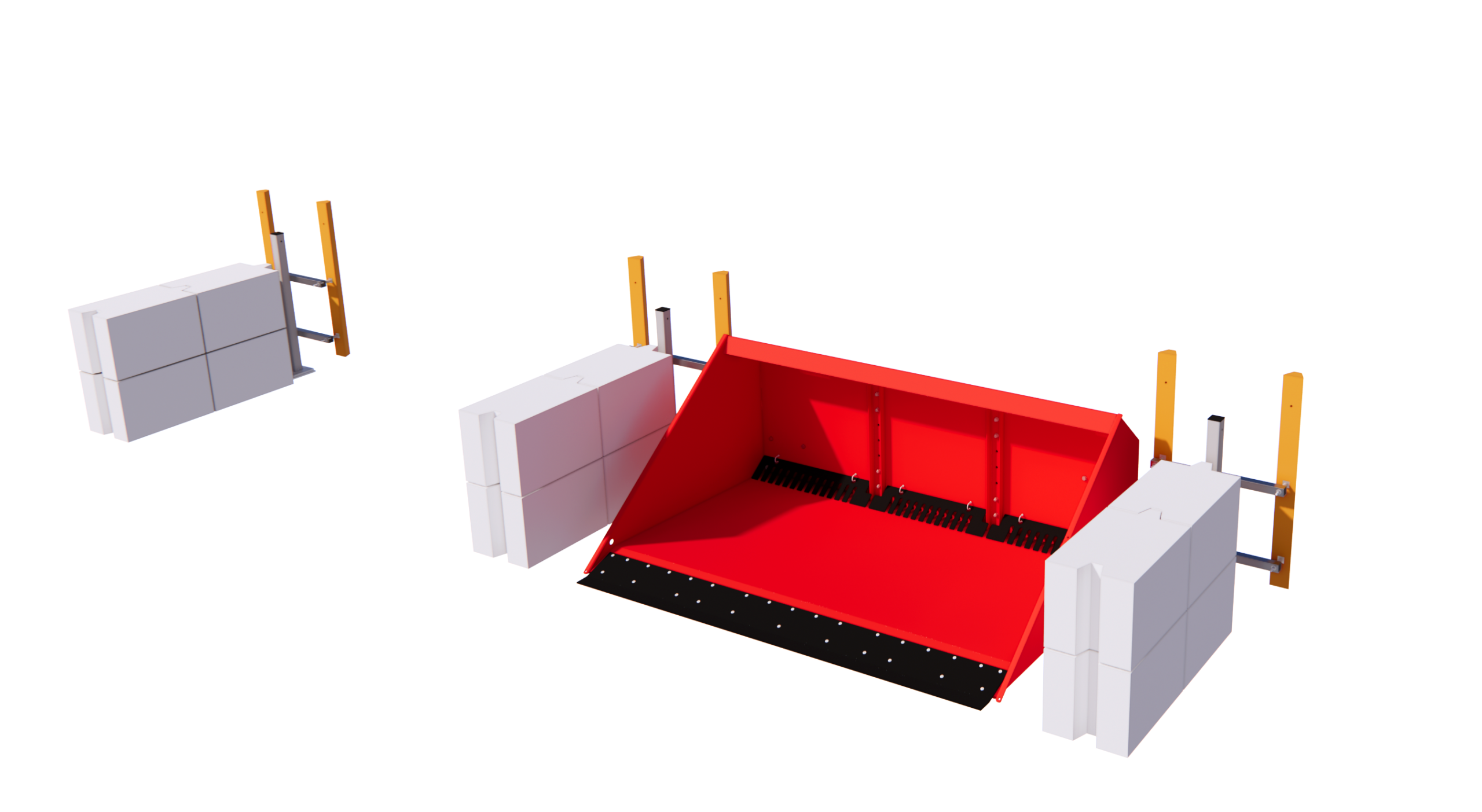

BumpBay – Drop Off & Disaster Recovery

The simplest barrier system, designed without gates or the need for footings.

This solution requires active operator /Administrative controls to prevent users from entering a Bay where the bins are being serviced.

The advantage is they are very quick and easy to move, and provide easy access for drive-through drop-off solutions.

1
2
3
4
5
6
1

3.6m Wide LBin

2

Guides & Stops for Machine Operator

3

Weighted Road Barrier. Concrete or poly water-filled.

4

5.2m Wide Bays

5

No footings are required, just a firm-level site.

6

Bumpstop barriers to minimise potential damage from loader operation

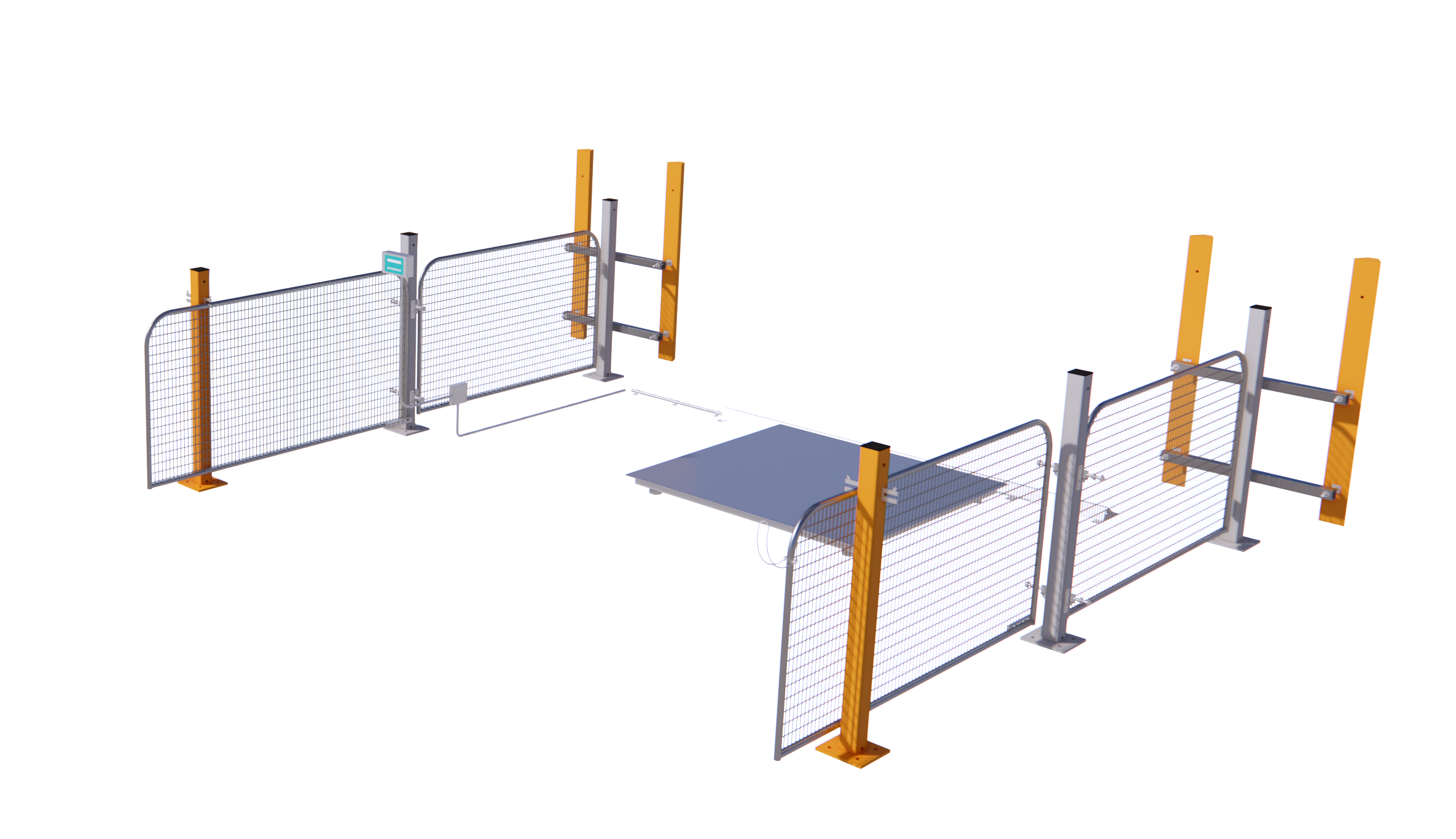

Load scale System for bolted barriers

Weigbridge alternative that can be installed in each bay

Significantly cut down the waiting times at the weighbridge/weighbridge solution for sites that don’t have one

allows for waste loads to be accurately recorded and/or charged accordingly

.

.

1
2
3
4
1

Large floorscale that LBin sits ontop of

2

Guides & Stops for Machine Operator

3

Can be implemented on bolted barriers both compact and full size

4

5.2m Wide Bays

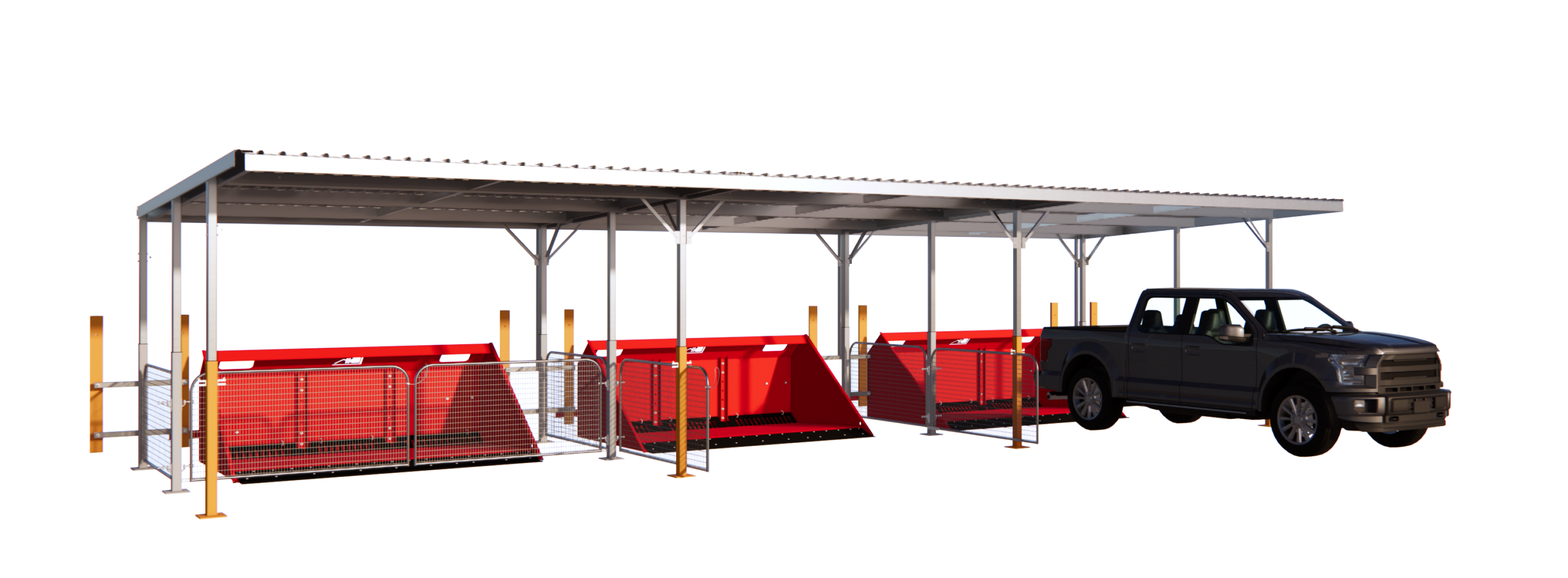

SheltaBays

Added roof structure for  BumpBays,

mitigating leachate & providing cover to the public.

1
2
3
4
5
1

Corrosion-resistant Galvanised frame & roof

2

Fits to Standard 5.2 BumpBay or Gravity BumpBay

3

SheltaBay Cover for LBin & Public

4

Bumpstop barriers to minimise potential damage from loader operation

5

Galvanised gated barriers

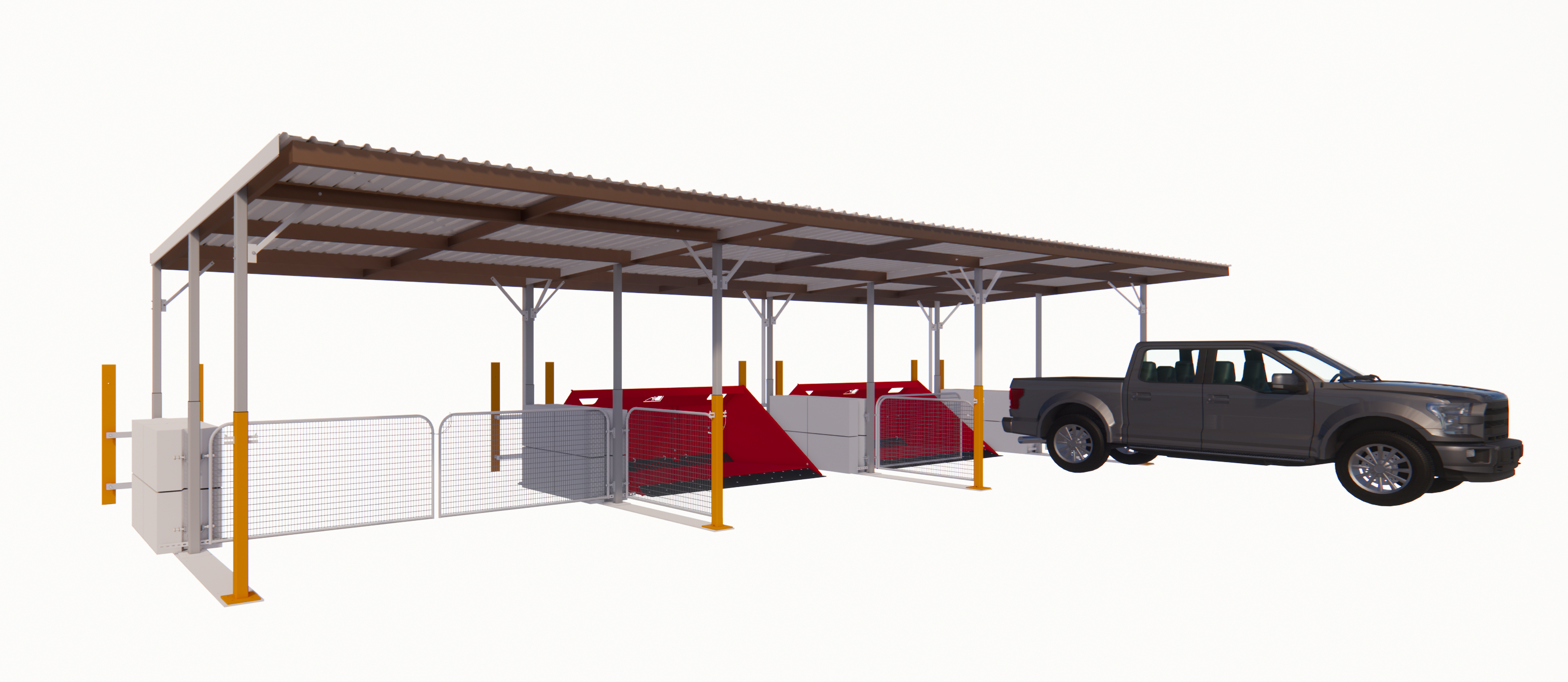

SheltaBay Gravity Barrier System

Sheltabay system is designed for Gravity barriers

allows sheltabays to be installed on simpler compacted earth sites with no need for roadbasing or concrete pads on site

1
2
3
4
1

3.6m Wide LBin

2

Weighted Road Barrier. Concrete or poly water-filled.

3

5.2m Wide Bays

4

Bumpstop barriers to minimise potential damage from loader operation

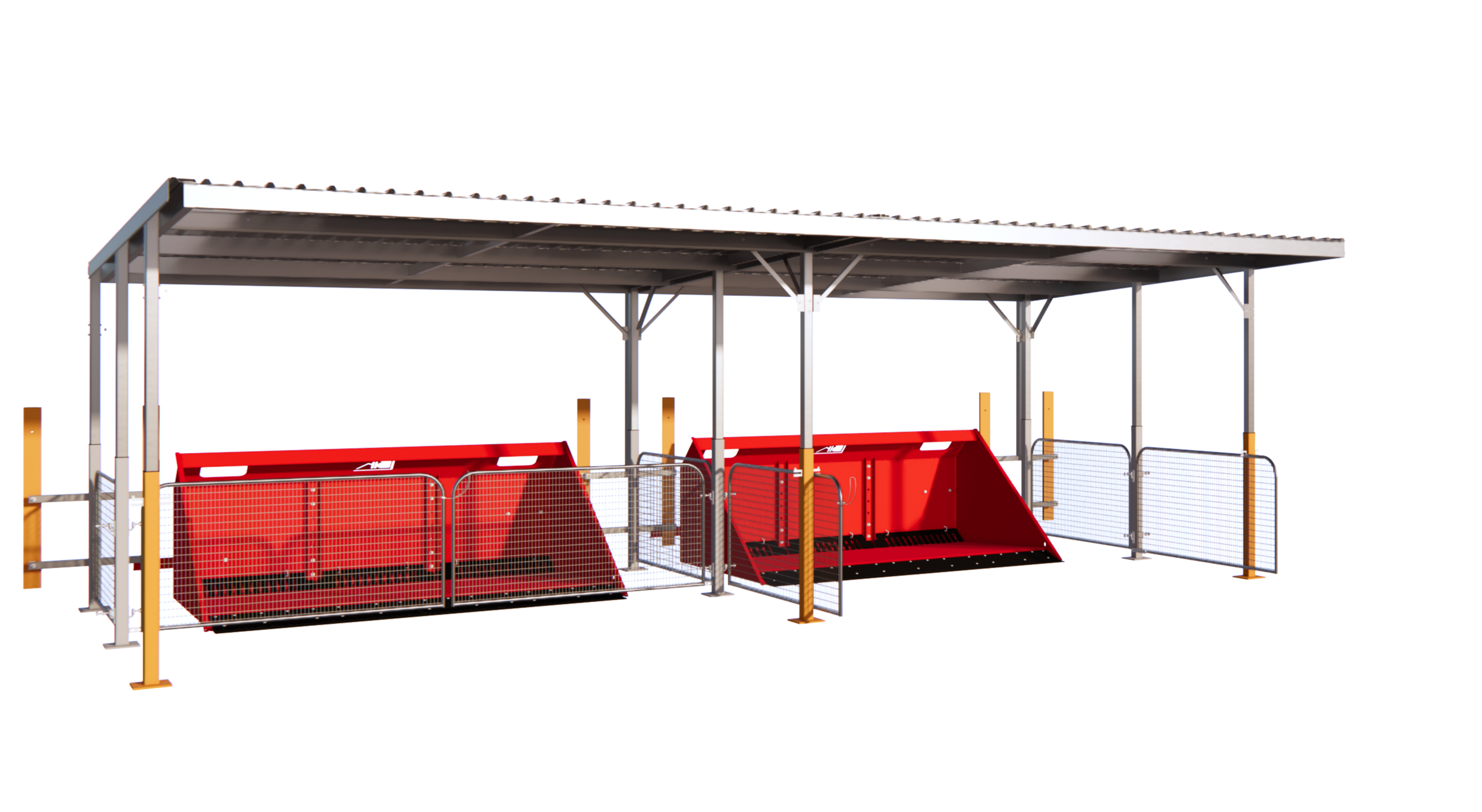

Sheltabay, Bolt to slab

 Built on a concrete pad with bolt to slab system,

the concreted sheltered system creates a clean, covered and better experience for customers

can additionally add loadscale systems when necessary

1
2
3
4
5
6
1

3.6m Wide LBin

2

Corrosion-resistant Galvanised frame & roof

3

5.2m Wide Bays

4

Galvanised barriers that can be closed to seperate public from machinery when LBin is removed

5

Bumpstop barriers to minimise potential damage from loader operation

6

Bolt to slab barriers allow fo addition of loadscale systems

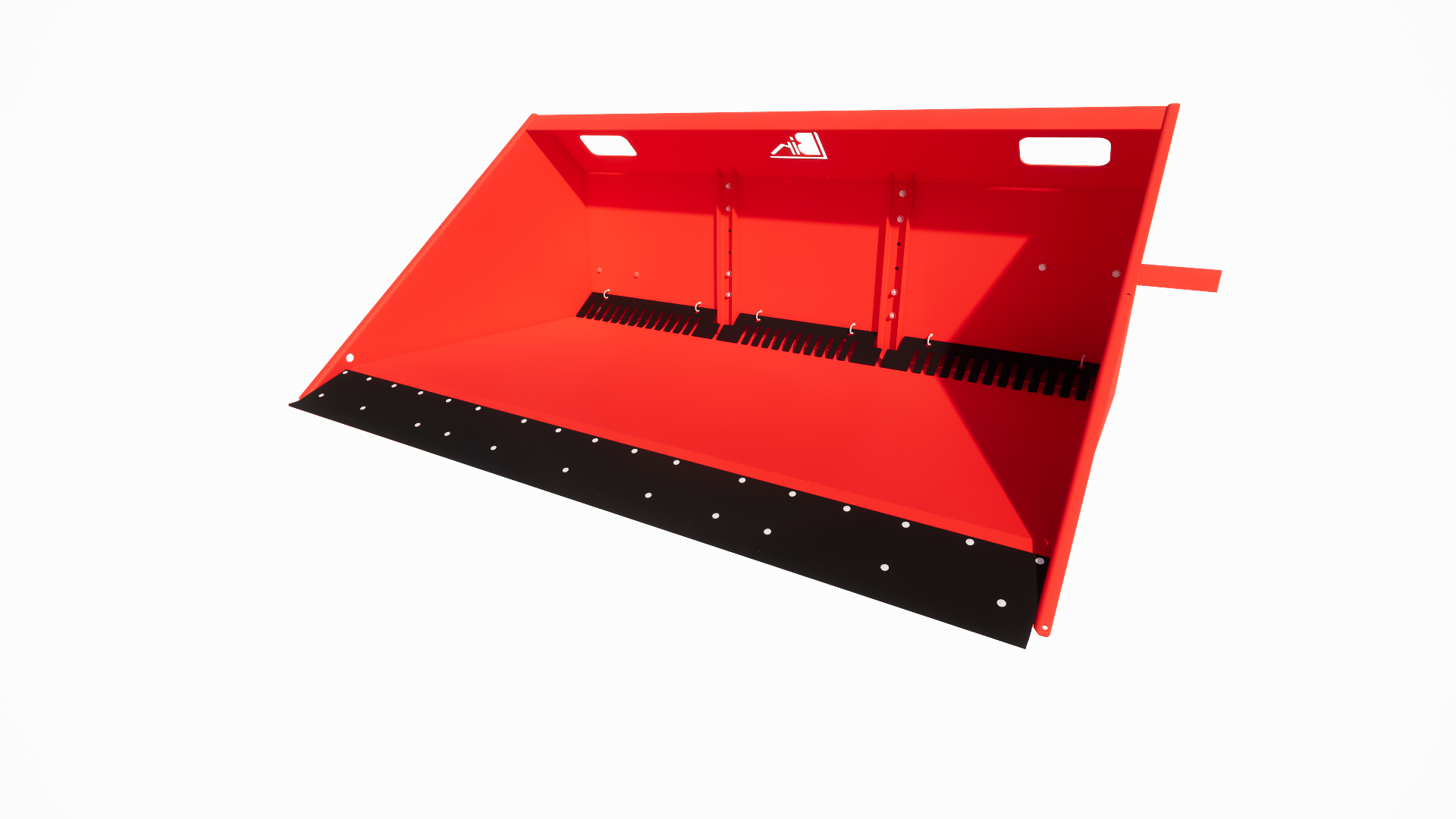

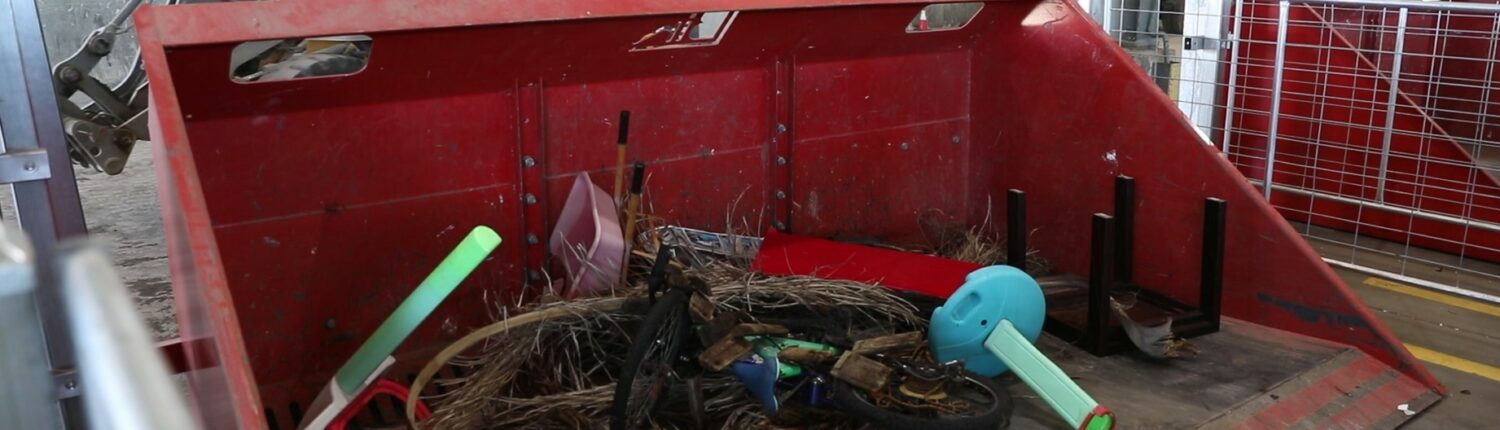

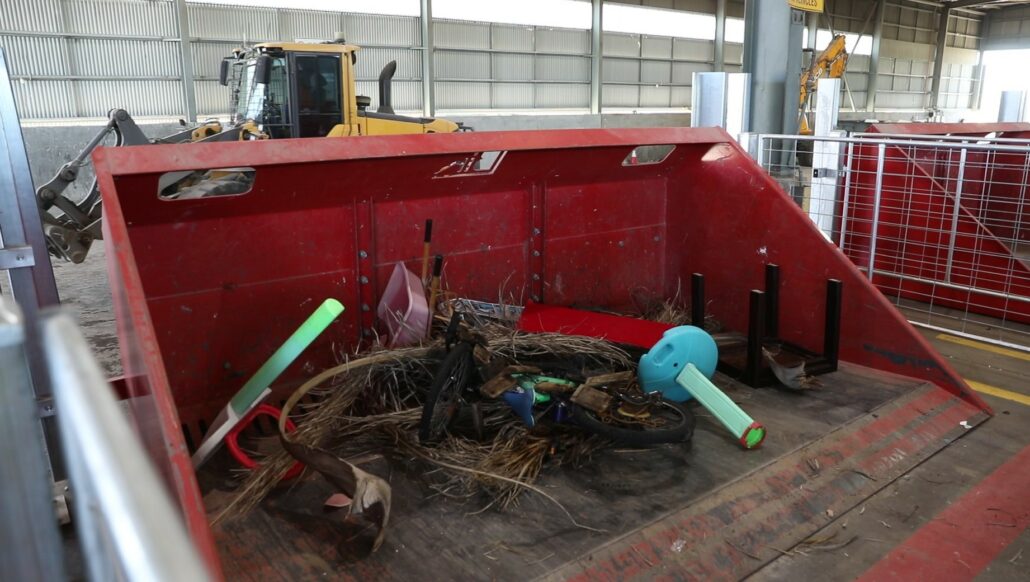

LBin

available in 3 widths: Med 2.4m (4.4m3), Large 3.0m (5.4m3) & Extra Large 3.6m (6.2m3)

1
2
3
4
5
1

Lay & Display floor with a gradual slope to leachate capture area.

2

Heavy duty Conveyor Belt rubber front lip

3

Floating finger grates to separate liquids & help the release of loads.

4

Viewports for improved operator visibility.

5

Folded edges for Public Safety

1
2
3
4
5
6
1

Spring Loaded stops to prevent limit Lbin insertion into bay

2

40mm Plate quick hitching lift ears.

3

View ports for machine operator visibility of  leading corners

4

6mm Folded sheet metal robust construction

5

Standard colours and colours to match council Branding

6

Removable bung to drain leachate
